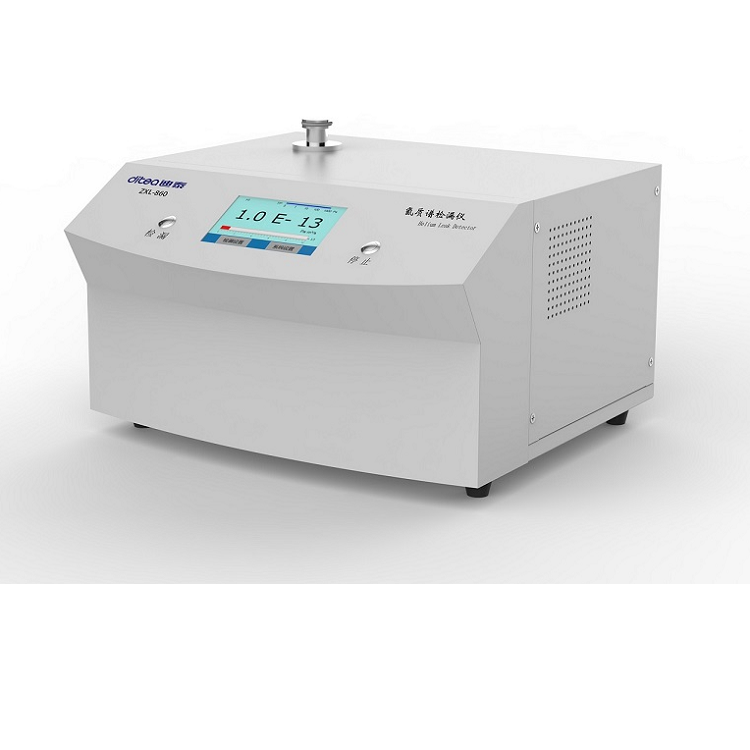

TXL-860氦質(zhì)譜儀檢漏儀
Product Introduction
●Portable and easy to move
●High
pressure resistance of leak detection port
●Quick
helium cleaning functionWide
detection range
●One
click reset of leak detection status
●Detection values can be stored
●Chinese and English menu interface
●The
entire machine has reached the international advanced level
Specification
1. Minimum detectable leakage
rate: 3×10-13Pa ·m3/s
2. Leakage rate display range:
1×10? 1- 1×10-13Pa
·m3/s
3. Starting time: ≤ 3min
4. Response time: ≤ 0.5s
5. Maximum pressure at the leak
detection port: 2000Pa
6. Mechanical pump pumping
speed: 2m3/h
7. Power requirements: 220V,
50Hz, single-phase, 10A
8. Working environment: 5-35 ℃
9. Relative humidity: ≤ 80%
10. Boundary dimension: 560 (W)
× 430 (D) × 300 (H)
11. Weight: 42kg
